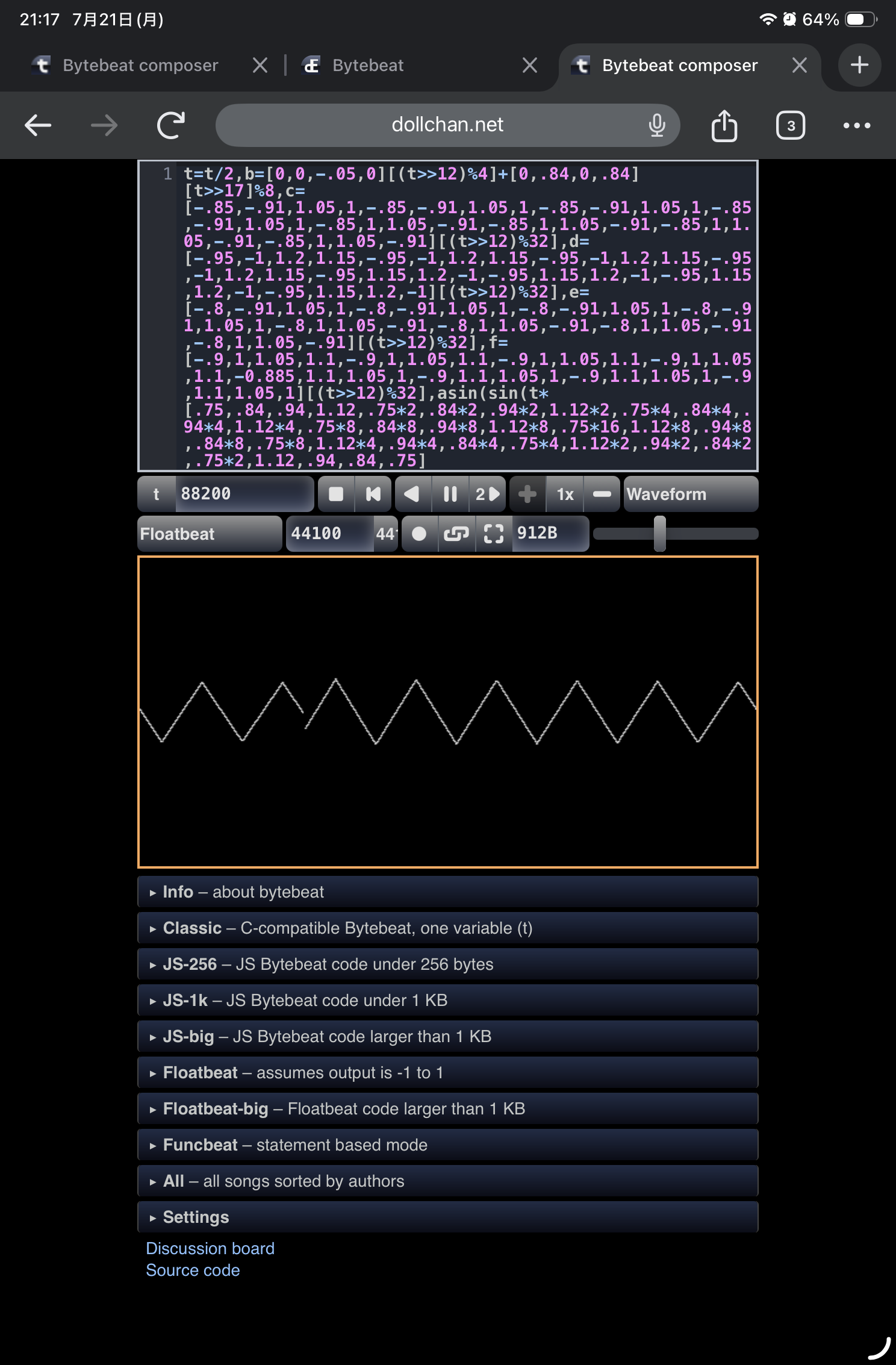

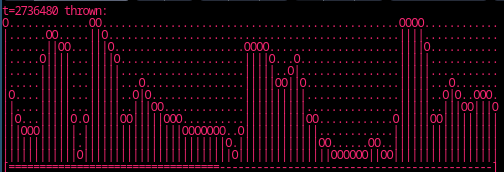

So, I present to you a big update of my player. In addition to "Points" and "Waveform", there are two new drawing modes - "Diagram" and "Combined".

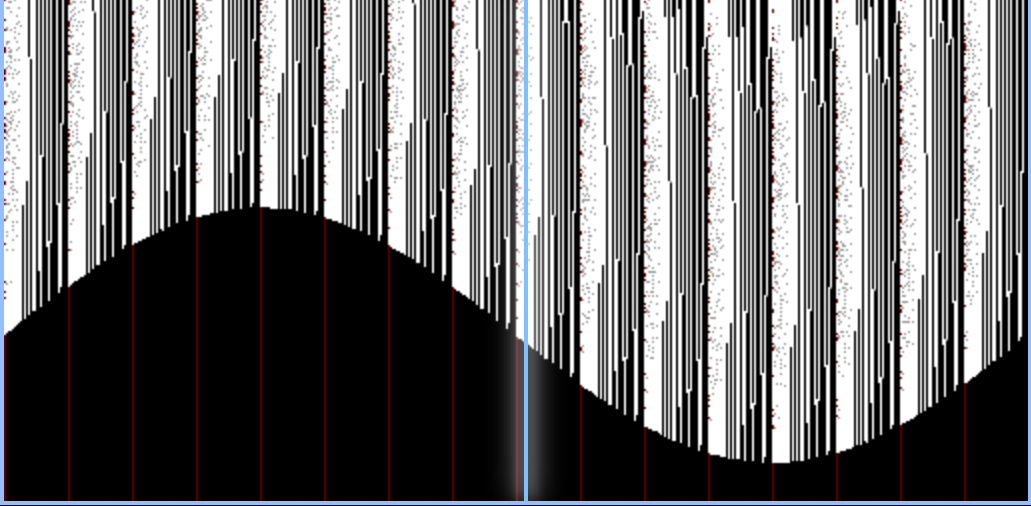

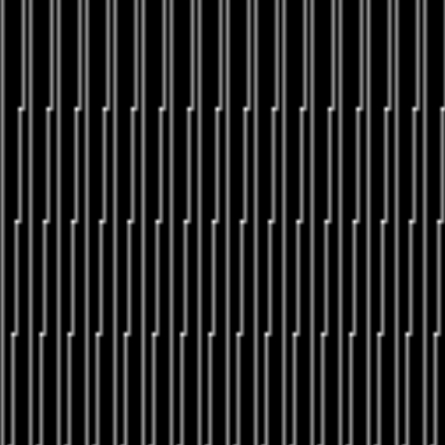

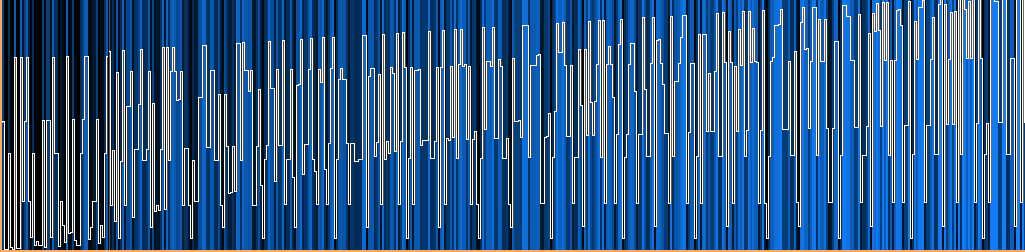

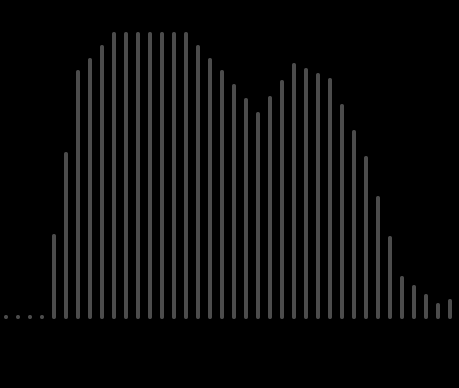

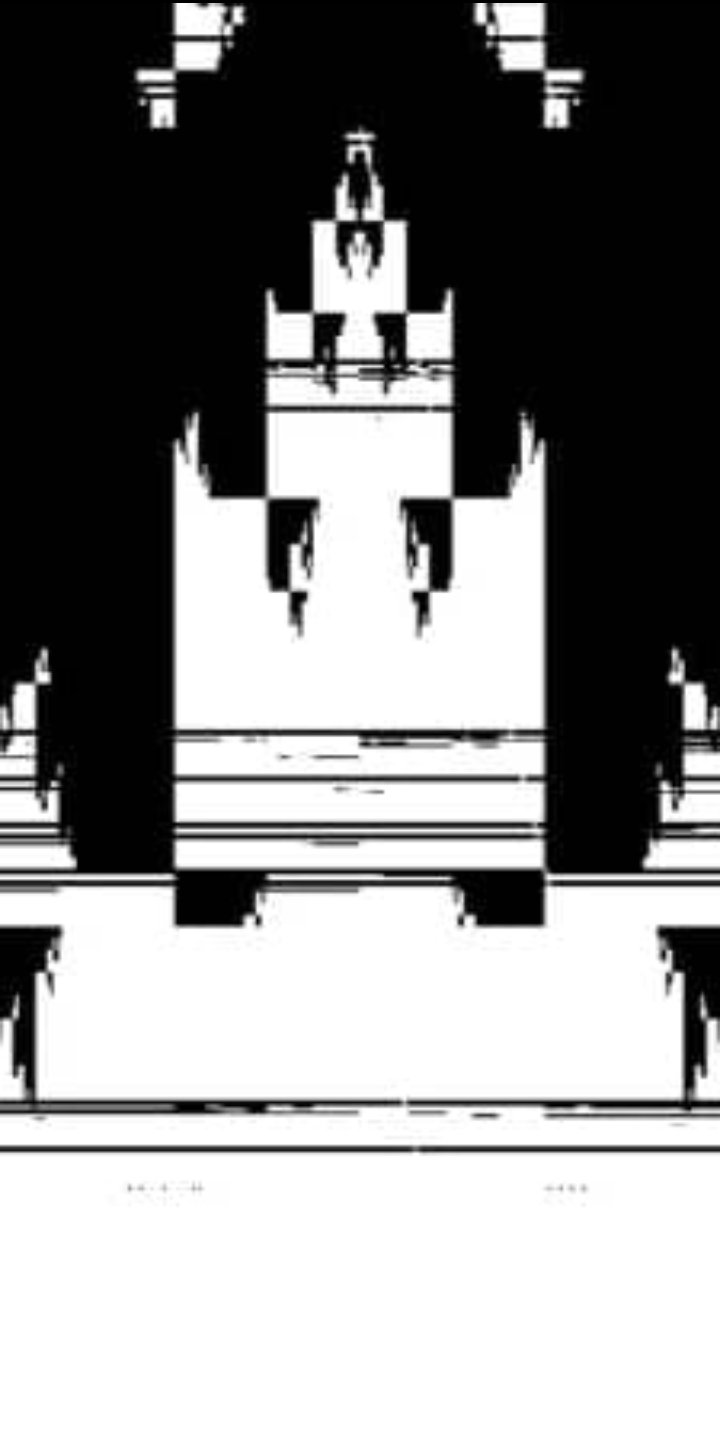

"Diagram" is the mode that was in older versions of dollchan. In it, the drawing area is filled with values whose brightness is proportional to the signal value. That is, at the maximum zoom, if the signal in the X-coordinate is Y=255, then instead of a dot at the very top in the "Points" mode, there will be a vertical line in the "Diagram" mode for the entire height from Y=0 to Y=255 with a maximum brightness=255. If the point in the "Points" mode is at a height of Y=100, then on the "Diagram" there will be a vertical line from Y=0 to Y=255 with a brightness=100. If the zoom is reduced to 1/2, we will already have two values in the X-coordinate and two points will be placed in the "Points" mode. For example, Y1=160 and Y2=50. So, there will be two lines on the X-coordinate in the "Diagram" mode, from Y=0 to Y=127 with a brightness=160 and from Y=128 to Y=255 with a brightness=50. At 1/4 zoom there will be 4 dots and 4 lines respectively, etc.

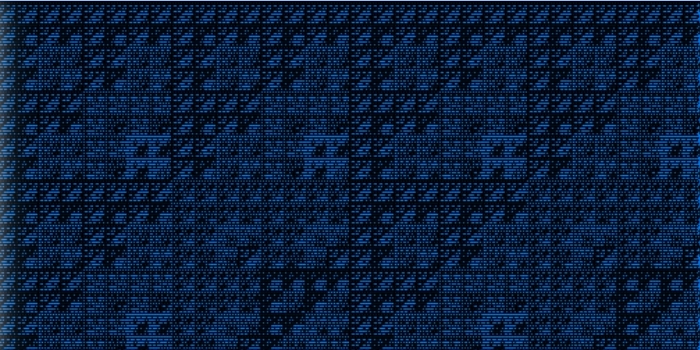

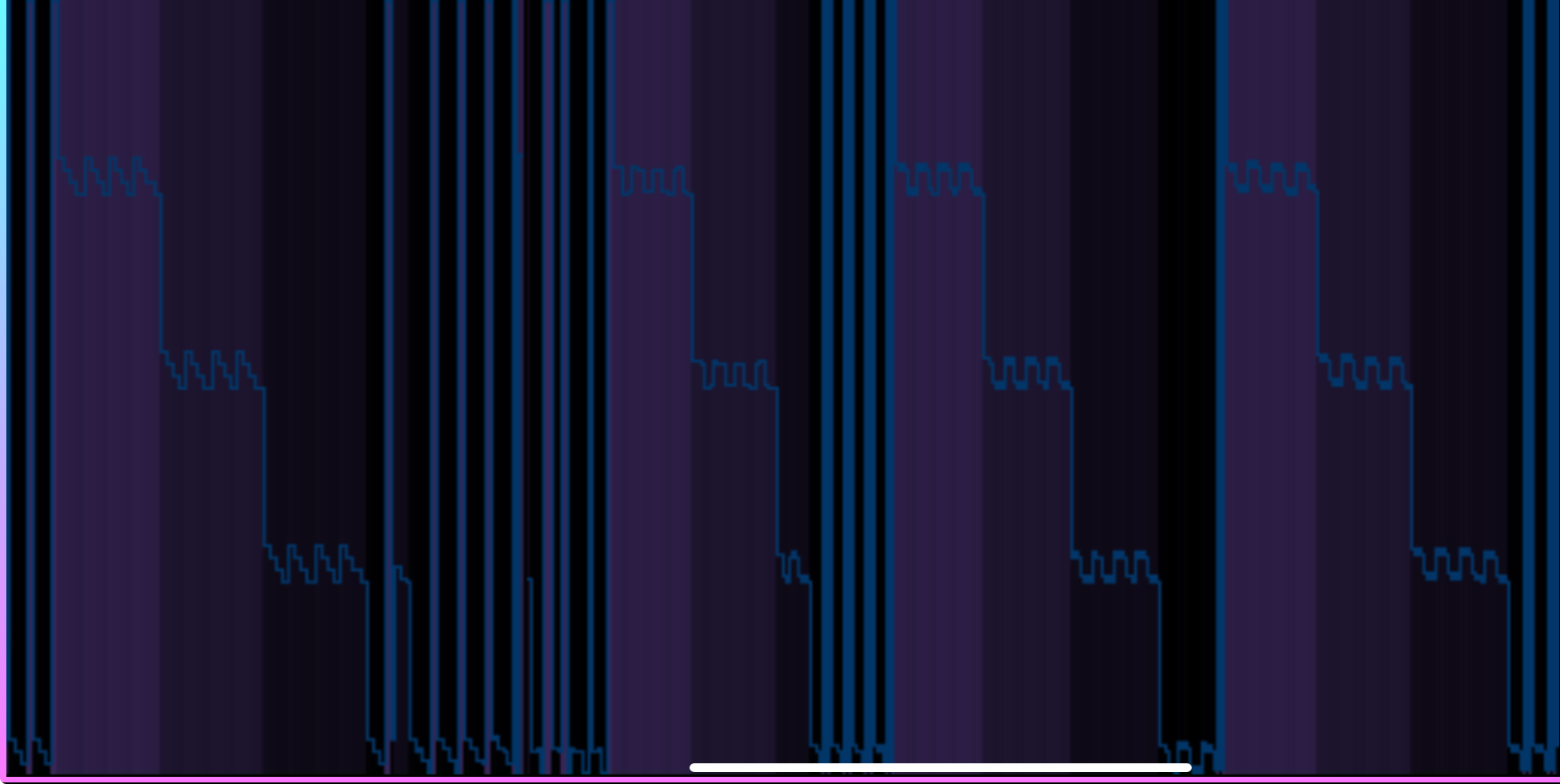

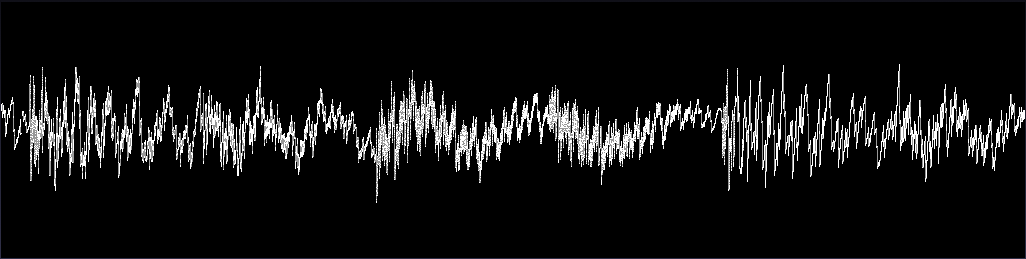

Thus, the diagram shows the level of the signal at a particular point in time, but in a different way. By itself, it may not be very visual and informative, but in combination with the "Waveform" mode, it turns out very clearly and beautifully! So, now there is a "Combined" display mode. Unfortunately, I had trouble coloring the vertical lines of the waveform in "Combined" mode, which was known to be 160 brightness, to be different from the 255 brightness dots that represented signal levels. In "Combined" mode, the entire Waveform is displayed at a maximum brightness of 255. But I think this is even better, the waveform will stand out better against the background of the diagram.

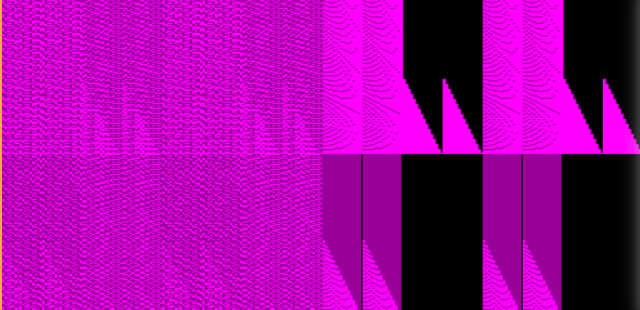

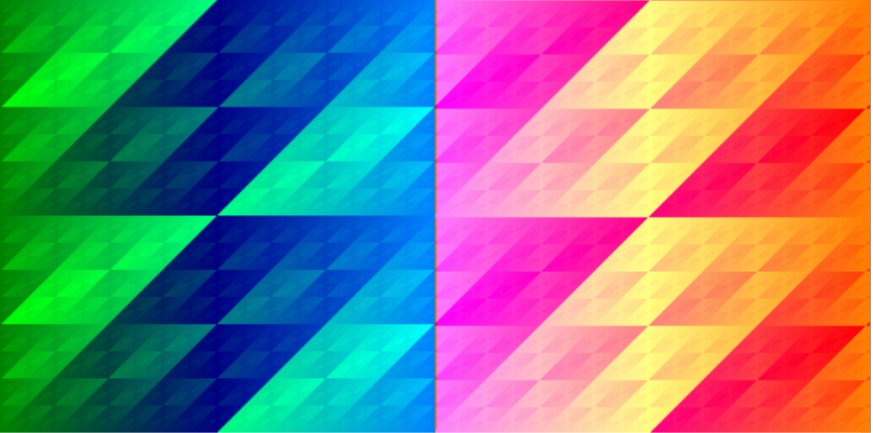

In addition, you can choose the color of the diagram and the color of the waveform! Note that with a stereo signal, the waveform is split into two. Of the three RGB component colors, the right takes two colors - red R and blue B, and the left takes green G. Since the default color for the composite signal is white (R=255, G=255, B=255), the right one will be red+blue=magenta and the left one will be green. If there is a yellow waveform (R=255, G=255, B=0), then the right will be red (without blue) and the left will be green. But if you make a custom waveform color, for example, green (R=0, G=255, B=0), then the rigft waveform will not be displayed at all (R=0, B=0). Or, for example, for a blue waveform (R=0, G=0, B=255), there will only be a right blue waveform and no left. Be careful when choosing the color of the waveform if you are using a stereo signal.
Also, along with the theme of the player style, both the color of the diagram and the color of the cursor will change! Warning! For the stereo diagram, it is also divided into two, as in the case of the waveform, red+blue for right and green for left. For diagram colors like white (R=255, G=255, B=255), yellow (R=255, G=255, B=0), and aqua (R=0, G=255, B=255), and their hues (R=128, G=255, B=0), (R=0, G=128, B=64), etc, the diagram splits nicely into two. But in other cases, only one of the signals, left or right, will be displayed. In my styles I used blue, green, magenta, pink diagram color. They display only one of the signals.
Oh, by the way, as you noticed, between the "+" and "-" zoom buttons, now there is a zoom level indicator. Pressing it resets the zoom level to a maximum of 1. To save space, negative powers of two are shown after 1/64.
